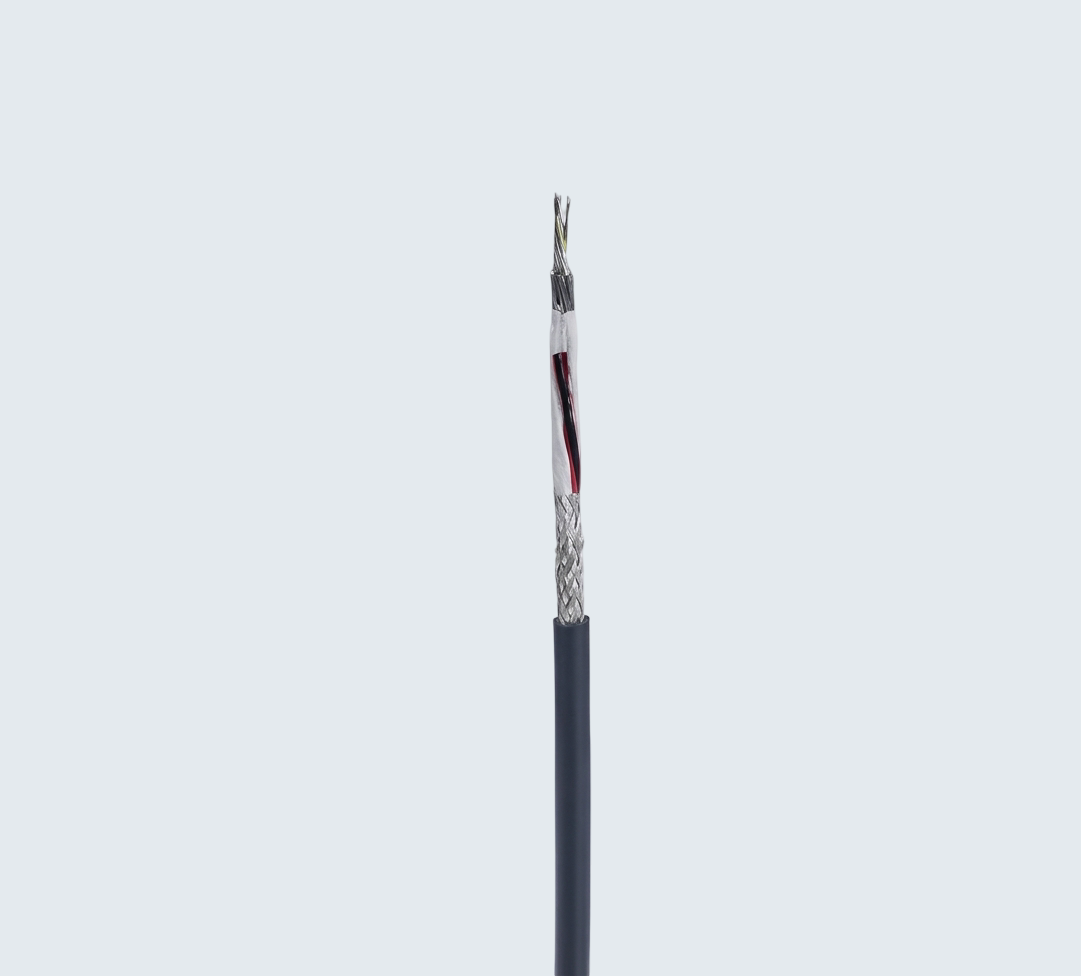

ROBOT-USB3.0 is a highly flexible, shielded, industrial-grade cable designed to ensure stable, high-speed data transmission in industrial automation, machine vision, and robotics systems.
| Cable type | Industrial-grade high-flex interface cable (equivalent) |
|---|---|
| Interface type / Standard | USB 3.0 SuperSpeed (fully backward compatible with USB 2.0) |
| Nominal voltage | 30 V (standard for low-current data interface lines) |
| Number and nominal cross-section of conductors | Combined data and power conductor structure (standard AWG: 28 AWG / 24 AWG / 22 AWG, or manual entry depending on line length) |
| Conductor construction | Stranded tinned copper, flexibility class 6 (highest degree of flexibility for mobile industrial equipment) |
| Shielding type | Dual shielding (individual pair shielding with aluminum foil + overall tinned copper braid with a coverage density of at least 85%) |
| Outer shell material | Special durable polyurethane (PUR) — wear-resistant, resistant to mineral oils, greases, and hydrolysis (or special oil-resistant PVC) |
| Ambient temperature range, °C | In motion (dynamic installation): from -20°C to +80°C |
| Minimum bending radius | For mobile use (in cable carriers): at least $7.5 \times d$ (where $d$ is the outer diameter of the cable) |
| Resistance to dynamic loads (number of cycles) | Optimized for use in drag chains — at least 5,000,000 bending cycles. |
| Maximum data transmission rate | Up to 5 Gbps |
| Labeling requirements | Mandatory marking of the cable type (ROBOT-USB3.0), temperature class, rated voltage, and sheath material type along the entire length. |
